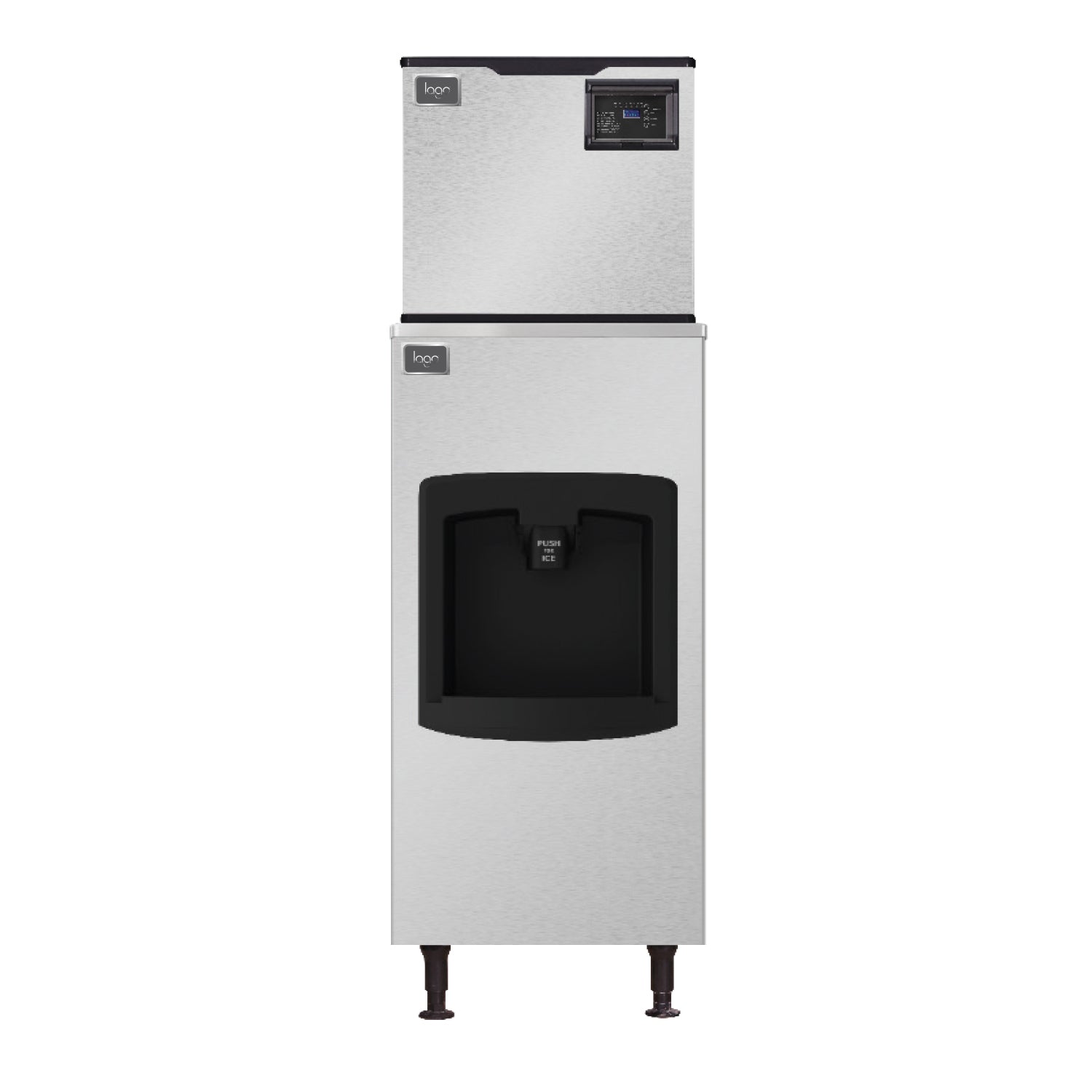

420 Modular Ice Dispenser
420 Modular Ice Dispenser
Available in models that can create 350 lbs or 420 lbs of ice per day, Lago Modular Ice Dispensers are ideal for hotels, motels, and resorts. They have premium stainless steel construction with a display panel that enables you to customize the thickness of the ice. Plus, they’re also built with an on-demand chute mechanism and an oversized drain pan to collect overflow, making them the perfect ice machine for any hospitality setting.
Advanced Features
- Clean Mode Easy Sanitizing & Maintenance
- Premium-Grade Stainless Steel & Parts
- High-Capacity Production
- Dispense-On-Demand
Specifications
- Item No. - Ice Maker Head
- ICM420RCL
- Item No. - Ice Dispenser Bin
- ICDB130L
- Overall Dimensions (L x W x H)
- 22.05" x 33.66" x 75.71"
- Ice Maker Head (L x W x H)
- 22.05" x 24.33" x 22.36"
- Ice Output
- 420 lbs per day
- Ice Shape
- Full Cube
- Compressor
- Highly
- Voltage (V/Hz)
- 115/60
- Power
- 800 W (Head)
- Condenser Unit
- Air
- Ice Maker Weight, Net / Gross
- 114.4 lbs / 123.2 lbs
- Ice Maker Packing Dimensions
- 25.79" x 29.53" x 24.41"
- Ice Maker Head Loading Qty. (20GP/40HQ)
- 72 / 216 pcs
- Ice Maker Whole Set Load. Qty (20GP/40HQ)
- 23 / 60 pcs
- Ice Dispenser Bin (L x W x H)
- 22.05" x 33.66" x 53.54"
- Ice Dispenser Bin Capacity
- 130 lbs
- Ice Dispenser Bin Power
- 210 W
- Ice Dispenser Bin Weight, Net/Gross
- 169.4 lbs / 183 lbs
- Ice Dispenser Bin Packing Dimensions
- 25.39" x 36.14" x 49.21"
- Ice Dispenser Bin Loading Qty (20GP/40HQ)
- 34 / 90 pcs
