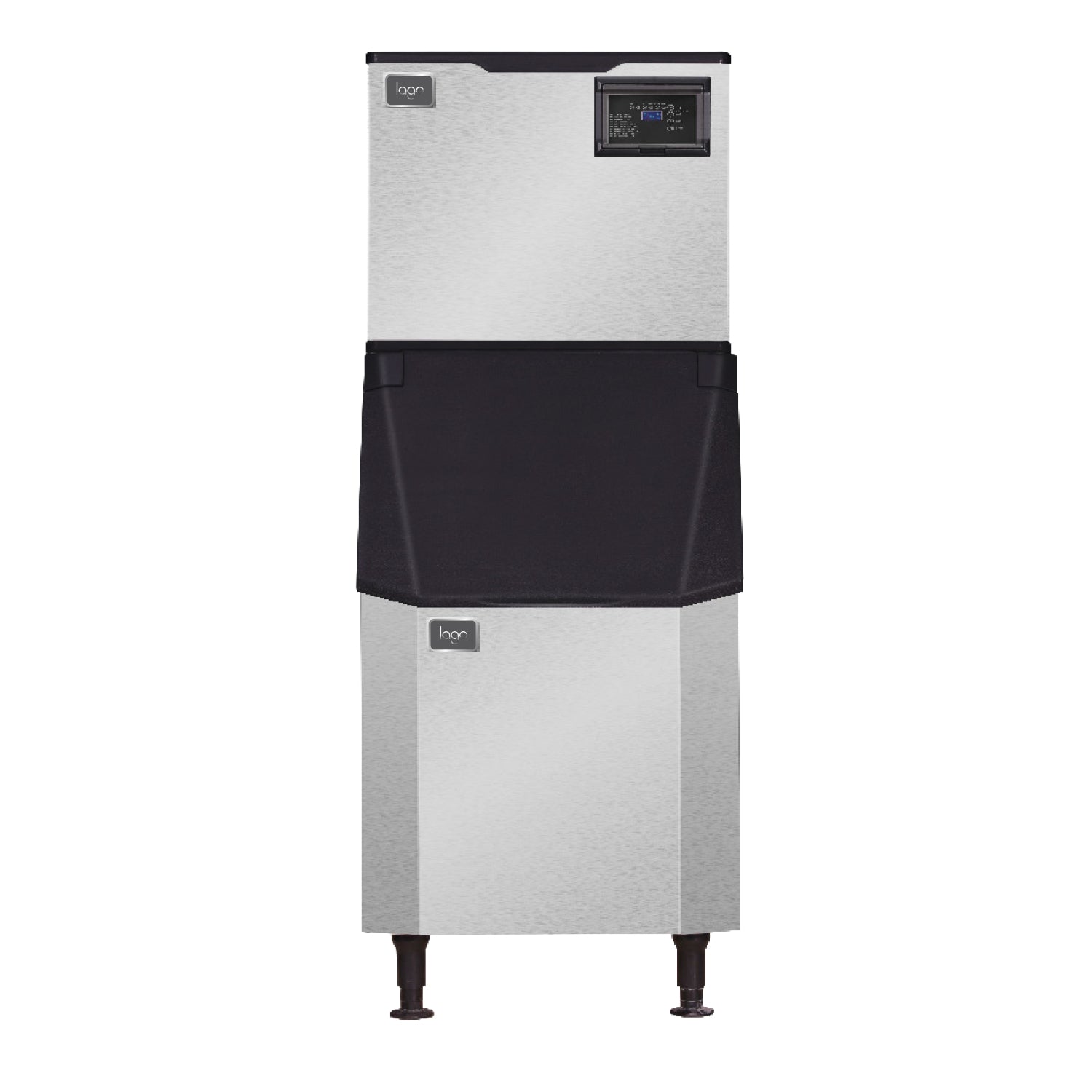

500 Modular Ice Machine
500 Modular Ice Machine
Available in models that can create 350 lbs, 420 lbs, or 500 lbs of ice per day, Lago Modular Ice Machines are ideal for restaurants, bars, and cafés. They have premium stainless steel construction with a display panel that enables you to customize the thickness of the ice. Plus, they’re also built with angled openings for effortless access, and adjustable legs to fit your space.
Advanced Features
- Clean Mode Easy Sanitizing & Maintenance
- Premium-Grade Stainless Steel & Parts
- High-Capacity Production
- Modular Design
Specifications
- Item No. - Ice Maker Head
- ICM500RCL
- Item No. - Ice Storage Bin
- ICB440L
- Overall Dimensions (L x W x H)
- 29.9" x 33.8" x 68.7"
- Ice Maker Head (L x W x H)
- 29.92" x 24.33" x 22.36"
- Ice Storage Bin (L x W x H)
- 29.92" x 33.86" x 46.46"
- Ice Output
- 500 lbs per day
- Ice Storage Bin Capacity
- 440 lbs
- Ice Shape
- Full Cube
- Compressor
- Highly
- Voltage (V/Hz)
- 115/60
- Power
- 1113 W
- Condenser Unit
- Air
- Refrigerant
- R290
- Ice Maker Head Net Weight
- 143 lbs
- Ice Maker Head Gross Weight
- 154 lbs
- Ice Storage Bin Net Weight
- 79.2 lbs
- Ice Storage Bin Gross Weight
- 101.2 lbs
- Ice Maker Head Packing Dim.
- 33.78" x 29.53" x 24.41"
- Ice Storage Bin Packing Dim.
- 32.28" x 36.22" x 42.52"
- Loading Qty (20GP/40HQ)
- 19/42 pcs
