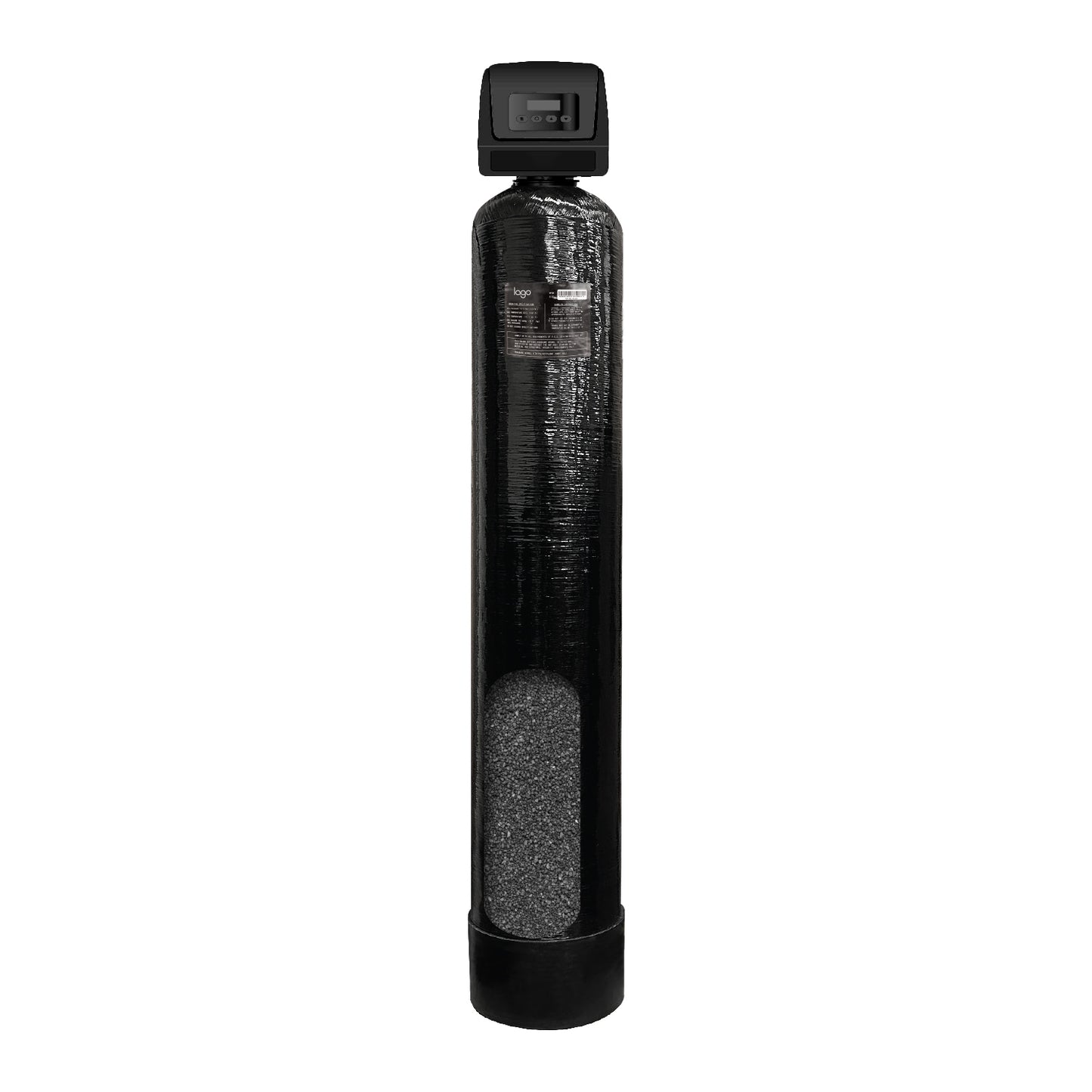

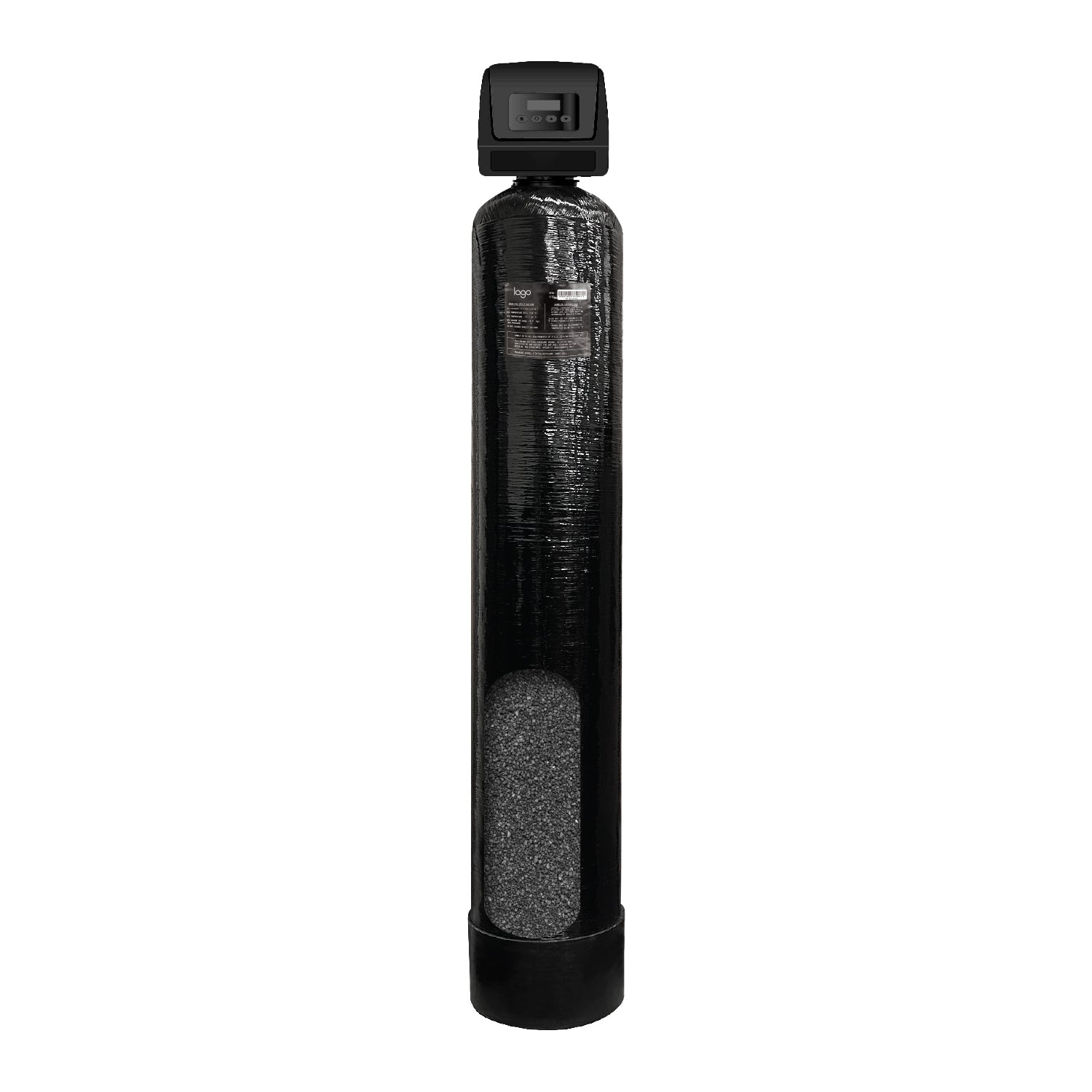

Lago CarbonFilter System 12" x 52"
Lago CarbonFilter System 12" x 52"
Lago Carbon Filter Systems effectively reduce unwanted tastes and odors, including chlorine. The granular activated carbon is made from a select grade of bituminous coal that has been acid washed for optimal filtration. With a user-friendly control valve, the system is available in 3 FRP tank capacities (9"x48", 10"x54", and 12"x52").
Control valve features:
• Bright LCD display
• 7 Advanced programming options
• 72-Hour memory backup
• 1" Ceramic bypass w/ flow meter
FRP Pressure Tank features:
• Seamless polyethylene tank liner
• Precision fiber-wound exterior
• Precision injection-molded base
Specifications
- Item No.
- WSK4249
- Control Valve
- WSVH1699
- Inlet / Outlet
- 1" / 1"
- Drain / Brine
- 3/4"
- Riser Tube
- 1.05" OD
- Raw Water Bypass
- Yes
- Valve Dimensions
- 7.5" W x 15.5" D x 6" H
- Ceramic Bypass Flow Meter
- WSBV1705
- FRP Tank
- WSPT1729
- Flow Rate
- 3.8 GPM
- FRP Tank Size
- 12" Dia. x 52" H
- Carbon Volume
- 1.76 cu. ft.
- Pallet Qty.
- 6 PCS.
