Lago Whole House Water Softener System - 48,000 Grain
Lago Whole House Water Softener System - 48,000 Grain

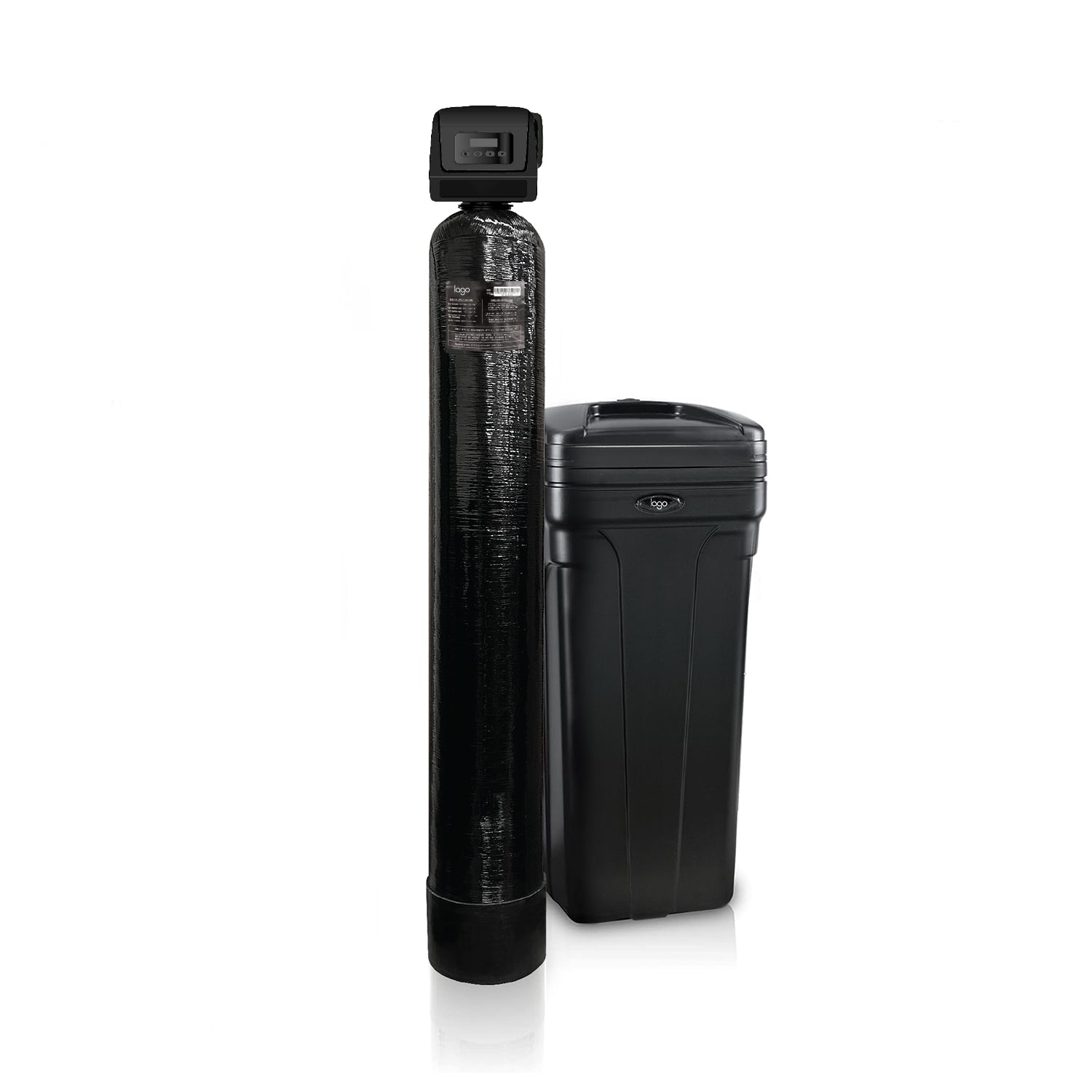

The Lago Whole House Water Softener System is salt-based and ideal for residences/offices with 3-4 bathrooms. It uses a premium cation resin to produce water without hard destructive minerals protecting plumbing and appliances while producing softer water for healthier skin/hair and better laundry. The Lago Water Softener System seamlessly integrates with Lago and non-Lago water filtration systems and includes a fiber-reinforced tank prefilled with resin, valve head, brine tank, and installation kit.
- 48,000 grain: large capacity offers a flow rate of 8-10 gallons per minute
- Protects against corrosion: softer water prevents plumbing corrosion and extends the lives of appliances and fixtures
- Automatic bypass: equipped with internal automatic bypass that ensures uninterrupted water access during regeneration
- High-efficiency control head: user-friendly interface allows you to select water softness, program regeneration schedule, and input the number in household to optimize water quality and control costs
- Universal compatibility: seamlessly integrates with Lago or non-Lago water treatment systems and applications
- Easy Installation: Designed for flexible setup, can be installed outdoors, in a garage, or in a basement, and works with standard plumbing types including copper, PEX, and CPVC

Specifications
- Item No.
- WSFS9527
- Control Valve
- WSVH3679
- Inlet / Outlet
- 1" / 1"
- Drain / Brine
- 3/4" / 3/8"
- Riser Tube
- 1.05" OD
- Hard Water Bypass
- Yes
- Valve Dimensions
- 7.5" W x 15.5" D x 6" H
- Ceramic Bypass Flow Meter
- WSBV1705
- FRP Tank
- WSPT3693
- Resin Volume
- 1.5 cu. ft.
- Capacity @ 15 lbs
- 45,000/cu. ft.
- Flow Rate
- 8 - 10 GPM
- FRP Tank Size
- 10" Dia. x 54" H
- Brine Tank
- WSBT3716
- Capacity
- 20 - 26 Gallons (74 - 100 L)
- Brine Tank Dimensions
- 15.5" W x 15.5" D x 38" H
- Pallet Qty.
- 6 PCS.
