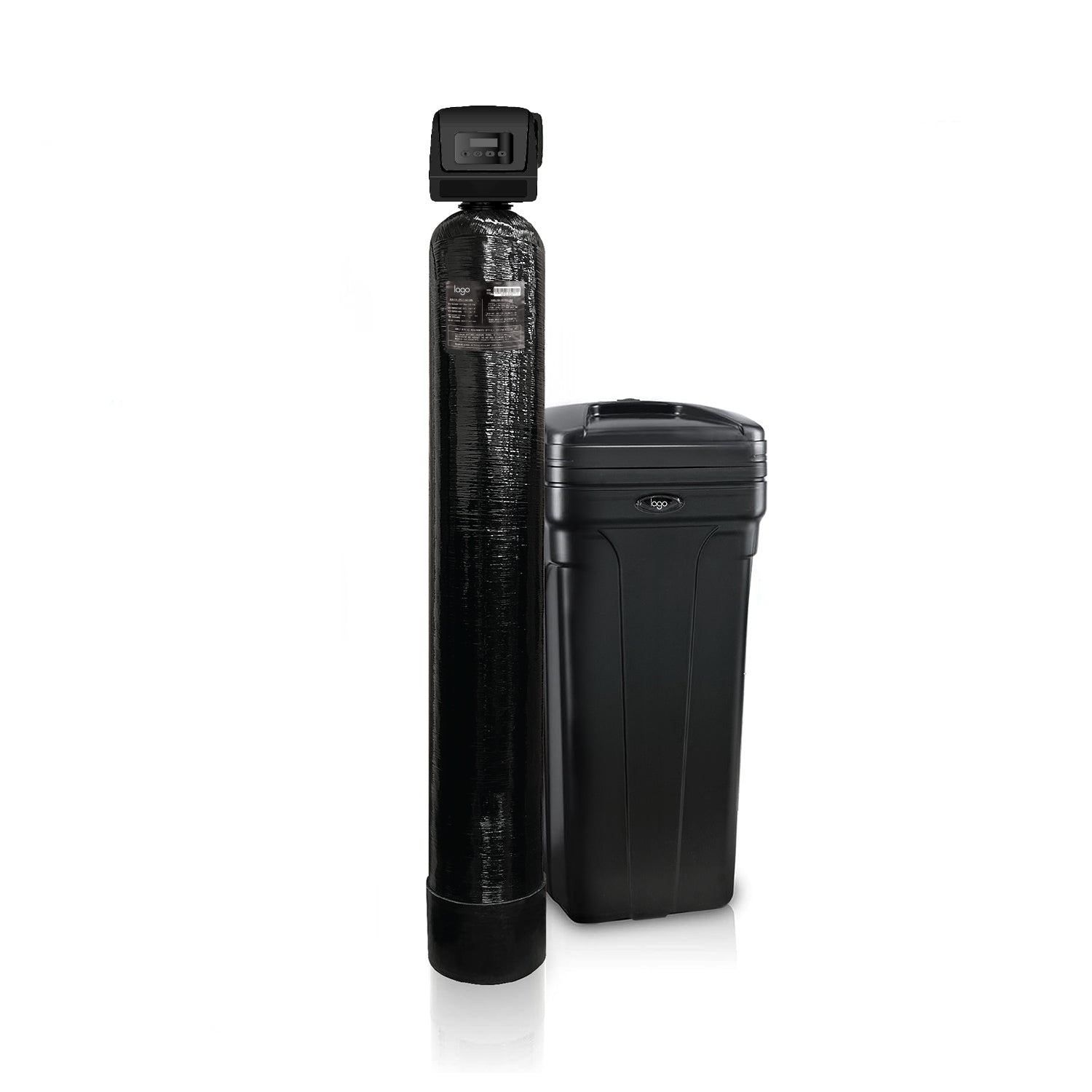

Lago Whole House Water Softener System - 64,000 Grains

Lago Whole House Water Softener System - 64,000 Grains

The Lago Whole House Water Softener System is salt-based and ideal for residences/offices with 4+ bathrooms. It uses a premium cation resin to produce water without hard destructive minerals protecting plumbing and appliances while producing softer water for healthier skin/hair and better laundry. The Lago Water Softener System seamlessly integrates with Lago and non-Lago water filtration systems and includes a fiber-reinforced tank prefilled with resin, valve head, brine tank, and installation kit.

  • 64,000 grain: large capacity offers a flow rate of 10-12 gallons per minute
  • Protects against corrosion: softer water prevents plumbing corrosion and extends the lives of appliances and fixtures
  • Automatic bypass: equipped with internal automatic bypass that ensures uninterrupted water access during regeneration
  • High-efficiency control head: user-friendly interface allows you to select water softness, program regeneration schedule, and input the number in household to optimize water quality and control costs
  • Universal compatibility: seamlessly integrates with Lago or non-Lago water treatment systems and applications
  • Easy Installation: Designed for flexible setup, can be installed outdoors, in a garage, or in a basement, and works with standard plumbing types including copper, PEX, and CPVC.

QUICK SETUP GUIDE

View full details

Specifications

Item No.
WSFS9534
Control Valve
WSVH3679
Inlet / Outlet
1" / 1"
Drain / Brine
3/4" / 3/8"
Riser Tube
1.05" OD
Hard Water Bypass
Yes
Valve Dimensions
7.5" W x 15.5" D x 6" H
Ceramic Bypass Flow Meter
WSBV1705
FRP Tank
WSPT3709
Resin Volume
2 cu. ft.
Capacity @ 15 lbs
60,000/cu. ft.
Flow Rate
10 - 12 GPM
FRP Tank Size
12" Dia. x 52" H
Brine Tank
WSBT3716
Capacity
20 - 26 Gallons (74 - 100 L)
Brine Tank Dimensions
15.5" W x 15.5" D x 38" H
Pallet Qty.
6 PCS.
